From Design to Delivery
Custom Switchboards is an industry leader in design and manufacture of switchboards, fully type tested to AS61439. With over 30 years’ experience
A switchboard manufacture of mechanical, industrial and commercial custom built switchboards, designed as per our customer requirements, known for creating with the highest quality, cost effective and innovative solution for our customers
Our switchboards are designed to relevant Australian Standard Industry AS3000, AS61439 and AS3439
Our custom built switchboards service includes:
Designing Main Switchboards, Control Switchboards, Group metering Switchboards, CT Chambers, and Electrical Control Panels for a diverse range of industry sectors.

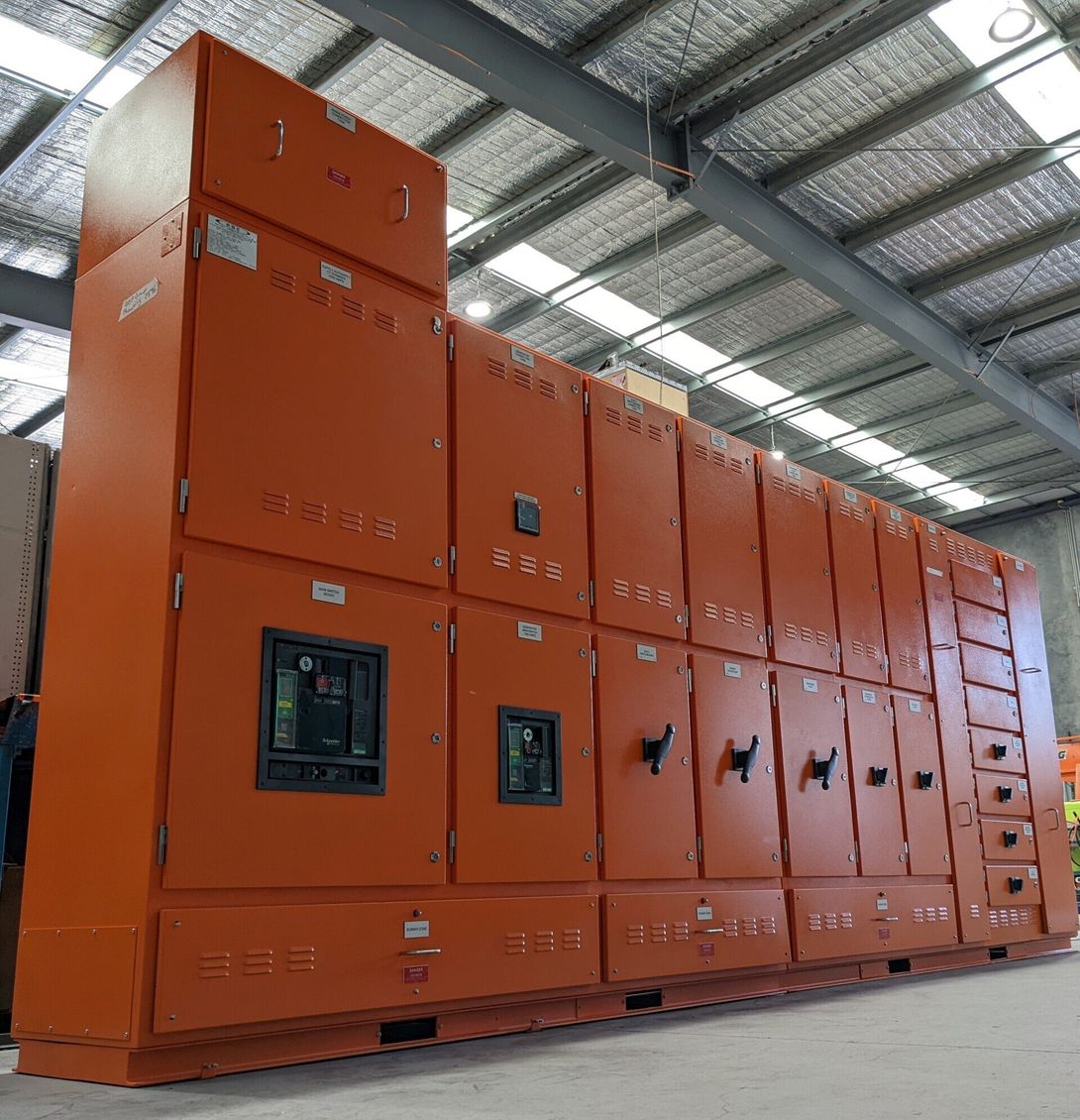

Main Switchboard
At Custom Switchboards have expertise to design, construct and deliver custom switchboards, as per
clients requirements
Our strength is working closely with our client, to obtain a cost effective and premium product and solution.
Key Features:
- Mild Steel, Aluminum or Stainless Steel construction
- Form internal segregation from Form 1 to Form 4b
- Current rating up to 4000Amp
- Short circuit withstand capacity up to 63kA for 1 second
- Degree of Protection IP55
- Fully compliant to AS3000 & AS61439 Standards
- Powdercoating in a wide range of colors and finishes

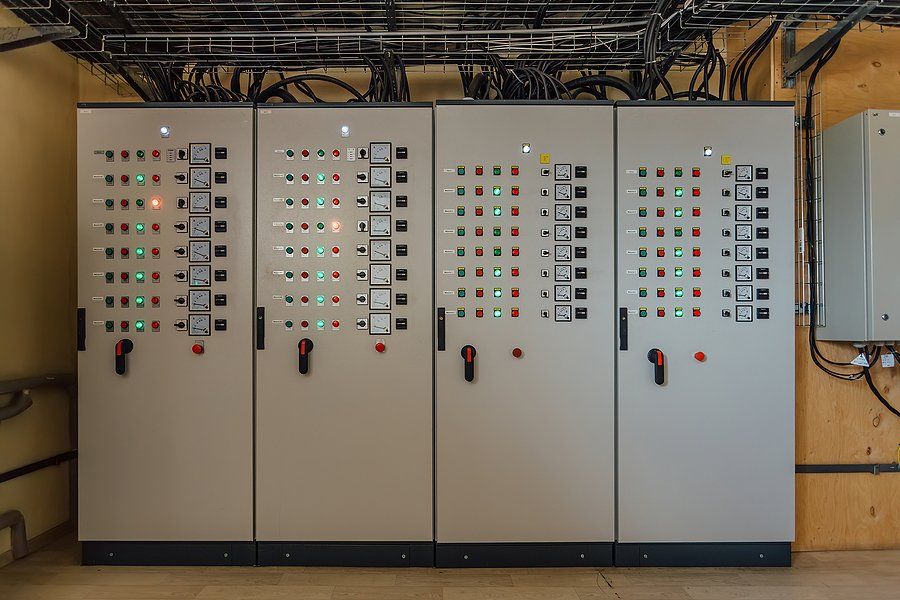

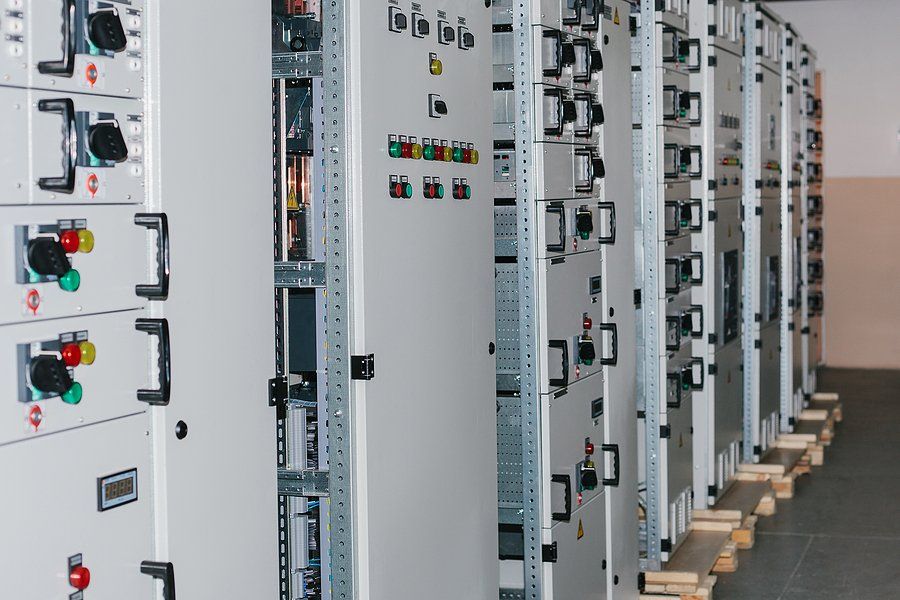

Motor Control Centers & Mechanical Switchboards
Custom Switchboards has vast experience in the design and construction of a custom manufactured Motor Control Centres, including Motor Starter Wiring, PLC wiring, Instrumentation and Control wiring.
All of Custom Switchboards designed and manufactured with Rely Logic, PLC Logic/Hardware, VSD, Soft Starters.
Motor Control Centres are fully tested prior to delivery to our clients
We design and manufacture a full range of Mechanical Switchboards from small to large
Key Features:

- Custom built
- Type tested to 63kA, 1 sec
- Fixed and semi demountable options
- Various Forms of Segregation, including Form 1 to Form 4b
- Protection rated to IP55
Supply Connection Pillars
Our Custom Switchboards Pillars, have been designed with a electrician in mind.
These Pillar boxes are manufactured for durability using Zincanneal steel, fully welded complete with Hot Dipped Galvanised Plinth
The connection Pillars are powdercoated through a dual process: undercoat primer, followed by electrostatically applied powder to the client’s colour requirements.
Kye Features:
- Front and Rear Connections and Accessibility
- Complies to AS61439 Standards
- IP54 Degree Protection with Ventilation Louvers
- Removable bottom Aluminum Glands Plates
- Designed for appliances up to 600 Amps
- Hot dipped Galvanised Plinth as Standard

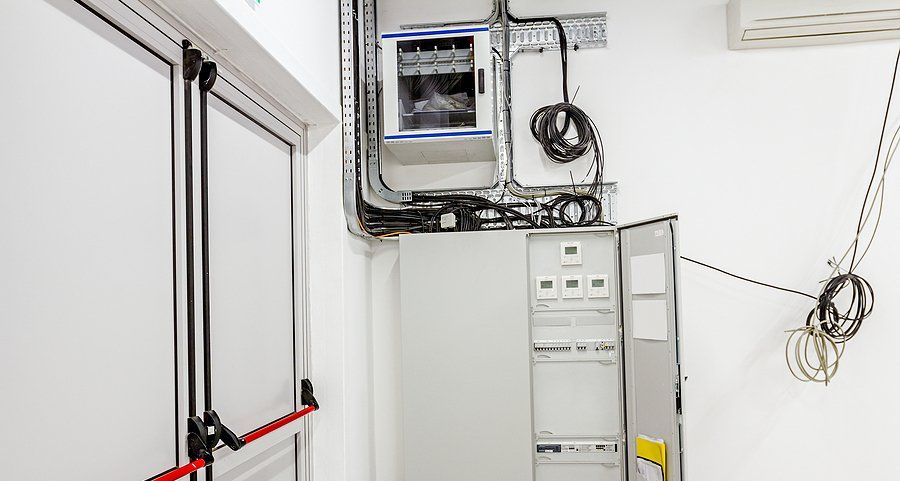

Meter Panels
Custom Switchboards Group Metering Panels are suitable for multi tenancy installation
All our Meter Panels are designed in compliance with AS/NZ3000, AS/NZ61439 and AS/NZ3439.1, also complying with each states Service Installation rules.
All Meter Panels come with (SPD) Sae Protection Devices, Metre Panel Isolators and ongoing tenancy circuit breakers.
Kye Features:
- Internal Pre Wired
Ideal Application:
- Factory
- High Risk Application
- Multi Residential Application
- Mixed Developments
